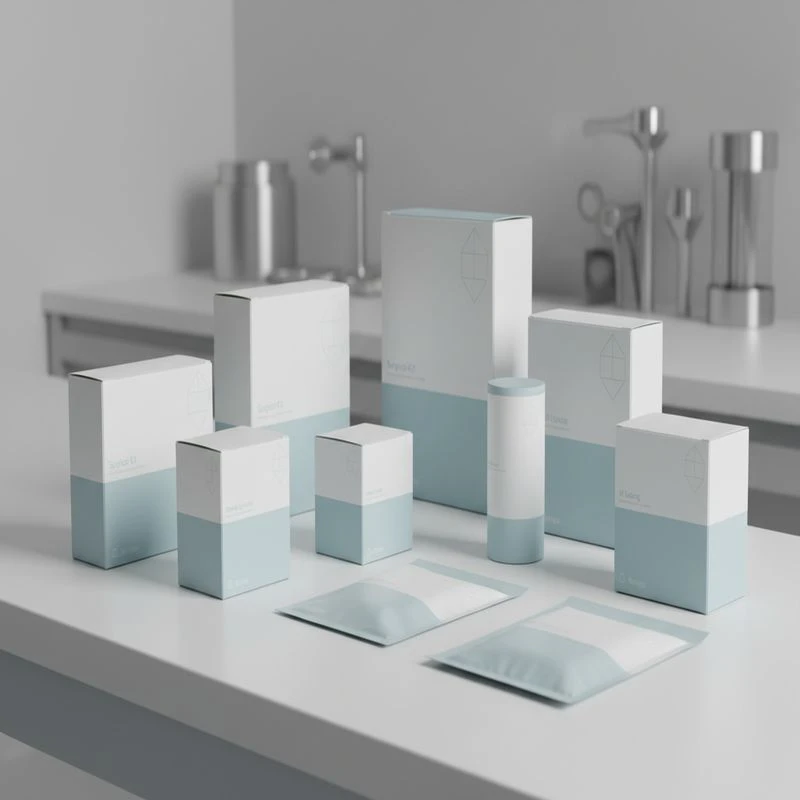

Custom Packaging for Medical Supplies and Equipment

Custom packaging for medical supplies and equipment must do more than look professional. It needs to protect the item through storage and handling, communicate essential information clearly, support any required sterile barrier system, and suit the way the product is supplied to healthcare settings or end users.

The right solution depends on the product’s size, fragility, cleanliness requirements, distribution method and labelling needs. For many products, the printed carton is only one part of a wider pack system that may also include pouches, trays, inserts, seals, labels and shipper cartons.

Medical Packaging

Medical packaging is best specified as a system rather than a single box. Start with the product and work outwards: the primary pack touches or directly contains the item; the secondary pack groups, protects or presents it; and the tertiary pack supports transport, warehousing and bulk delivery.

For example, a small diagnostic accessory may sit in a sealed pouch, then a labelled folding carton, then a corrugated shipping carton. A reusable piece of equipment may instead require a fitted insert inside a rigid carton, with separate compartments for cables, instructions and accessories.

Match the pack format to the product

The following formats suit different packaging objectives:

A custom carton should not be selected purely by dimensions. The internal space must account for the actual packed product, any pouch or tray, instructions for use, protective material, tolerances and the ease with which a user removes the contents.

Information design is part of protection

Clear printed information reduces handling errors. The exact information required will vary by product category and distribution model, but a packaging brief may need space for:

• product name and variant;
• quantity or pack configuration;
• product code or SKU;
• batch, lot or serial information where applicable;
• expiry or use-by information where applicable;
• storage and handling instructions;
• barcode or data carrier;
• warnings, symbols and disposal directions;
• manufacturer or responsible supplier details; and
• instructions for use, either on-pack or as an included leaflet.

Keep variable information separate from fixed artwork when possible. A carton can carry stable branding and product details, while a label or print area handles batch-specific data. This can simplify artwork management when multiple pack sizes or product variants are involved.

Small type, low contrast, overly glossy surfaces and crowded panels can all make critical information harder to read. Build in enough clear space around barcodes, variable-data areas and opening instructions.

Choose materials with the use environment in mind

Material selection should reflect how the packed product will be stored and handled. Consider exposure to humidity, dust, refrigeration, light, repeated opening, clinical handling and warehouse conditions.

Paperboard cartons can provide efficient printed presentation for many lightweight products. Corrugated board is often more suitable where the pack must carry weight or resist compression during storage and transport. Internal paperboard or moulded inserts may help hold components in place, while foam or other cushioning materials may be needed for more delicate equipment.

Before finalising a material, check:

1. whether it can safely contact the relevant primary pack if contact is possible;
2. whether fibres, dust or loose components could create a product-handling issue;
3. whether the item needs light, moisture or static protection;
4. whether cleaning or wipe-down processes affect the surface;
5. whether the packaging can be opened while maintaining the intended workflow; and
6. whether the disposal route aligns with the product and user environment.

For product-facing cartons, see the available custom box packaging options and use the product dimensions, pack hierarchy and artwork requirements to guide the initial specification.

Sterile Design

Sterile design starts with an important distinction: a printed outer box is not automatically a sterile barrier. If a product must remain sterile until point of use, the sterile barrier system is usually the sealed primary pack, such as a purpose-designed pouch, tray-and-lid system or other validated format.

The carton may protect that sterile pack, carry important information and support presentation, but it should not be assumed to create or maintain sterility on its own.

Design around the sterile barrier system

Where sterile products are involved, define the packaging layers and their responsibilities before commissioning printed packaging.

A practical pack hierarchy may include:

1. Product and primary sterile barrier – contains the item and maintains the intended barrier until opening.
2. Protective secondary pack – guards the sterile pack from crushing, puncture, abrasion or light exposure where needed.
3. Transport packaging – consolidates packs for storage and distribution.
4. Labels and documentation – provide identification, traceability and safe-use information.

The secondary carton must fit the sealed primary pack without excessive empty space or tight pressure points. Too much movement can cause abrasion or corner damage; a carton that is too tight may crease, stress or puncture the sealed pack.

Sterile-ready carton design checks

When specifying cartons around sterile packs, review the following points with the relevant packaging, quality and product teams:

• Does the carton protect seal edges, corners and peel tabs?
• Can the pouch or tray be removed without tearing or snagging?
• Are inserts smooth, clean and appropriately shaped for the primary pack?
• Is there a clear opening method that avoids damaging the contents?
• Does printed information remain readable through the expected storage period?
• Is the pack arrangement compatible with the intended sterilisation, packing and handling process?
• Are any inks, coatings, adhesives or substrates appropriate for their location in the overall packaging system?
• Is the final pack configuration subject to validation or verification under the product’s quality processes?

Do not assume that a stock carton, decorative coating or standard adhesive is appropriate around a sterile product. Compatibility depends on the materials, sterilisation approach, packing process and requirements for the finished medical product.

Avoid confusing “clean” with “sterile”

A carton can be clean, well-made and suitable for secondary packaging without being a sterile packaging component. Using precise language in artwork and procurement documents helps avoid incorrect claims. Terms such as “sterile”, “sterile barrier”, “tamper evident” and “single use” should only appear where they accurately describe the finished product and have been approved through the appropriate process.

B2B Manufacturing

For procurement teams, reliable medical packaging begins with a detailed specification. A quote based only on length, width, height and artwork is rarely enough for a product that has protection, traceability or compliance considerations.

A useful packaging brief defines what the box must do, not merely what it should look like.

Information to include in a packaging brief

Provide the following where relevant:

• finished pack dimensions, including internal dimensions and acceptable tolerances;
• product dimensions, weight and centre of gravity;
• number of components, accessories and documents inside each pack;
• primary pack type and dimensions;
• desired box style, opening method and closure;
• board, corrugated or rigid-box preference;
• internal insert, divider or cushioning requirements;
• artwork files, branding rules and colour expectations;
• print sides, finishes and any variable-data areas;
• barcode type, size, orientation and quiet zones;
• expected pack quantities and ordering pattern;
• storage and handling conditions;
• pallet or outer-carton configuration requirements; and
• samples or drawings of existing packaging, where available.

A physical product sample or accurate dummy can be particularly helpful when the item has an irregular form, a fragile screen, protruding parts or several loose accessories.

Sampling and artwork approval

For medical supplies and equipment, a visual artwork approval is important but may not be sufficient. Where the box performs a protective function, assess a sample or prototype with the actual packed product.

Check the following before moving to production:

• the product fits without force or excessive movement;
• all components remain in their intended locations;
• carton flaps, tabs and closures operate consistently;
• critical text is legible at the final printed size;
• barcodes scan after printing and finishing;
• labels adhere to the intended surface;
• instructions are easy to find and remove;
• pack orientation is obvious; and
• packed units fit the planned outer carton.

If product information changes frequently, create an artwork control process. This should identify the current approved file, revision number, responsible reviewer and any fields that need updating between production runs. It reduces the chance of old instructions, incorrect product codes or superseded branding reaching the packing line.

Managing product ranges and variants

Medical product ranges often include multiple sizes, configurations and regional variants. A consistent packaging architecture can make these easier to manage.

Use a shared carton structure where practical, then differentiate variants with:

• a clear product descriptor;
• an easily visible size or configuration panel;
• controlled colour coding used alongside text, not instead of it;
• distinct product codes;
• careful barcode management; and
• consistent placement of warnings and handling information.

Avoid relying solely on colour to distinguish products. Colour can support fast recognition, but text, symbols and codes should still clearly identify the variant.

XGolden Print provides custom packaging boxes and printing solutions. Its stated manufacturing experience and production scale may be relevant when comparing suppliers, but buyers should still confirm the material options, sampling process, artwork controls and suitability for their specific medical packaging application.

Protection

Protection requirements vary sharply between a lightweight disposable item and a multi-component electronic device. The central question is simple: what could happen to the product between packing and use, and which packaging layer controls that risk?

Potential risks include crushing, impacts, vibration, puncture, scratches, moisture, dust, light exposure, parts becoming separated, unauthorised opening and incorrect orientation.

Use internal packaging to control movement

Empty space is not always a problem, but uncontrolled movement is. An insert, divider, folded board structure or appropriately sized carton can prevent components from colliding during handling.

For equipment packs, consider whether the design needs to separate:

• screens or lenses from cables and power supplies;
• sharp or rigid accessories from softer components;
• consumables from reusable hardware;
• instructions from parts that could obscure them; and
• components that must be unpacked in a particular order.

The simplest internal structure is often the most practical. Complex inserts can improve presentation, but they may slow packing, make product removal difficult or increase the chance that a component is placed in the wrong cavity.

Select protection based on the real distribution journey

Packaging should be assessed in the condition in which it will actually travel. A carton supplied individually to a clinic, held in a warehouse, placed within a bulk shipper or sold through e-commerce may face different risks.

Ask these questions:

• Will the product be shipped as an individual unit or within an outer carton?
• How many handling points are expected before use?
• Will units be stacked, shelved or stored for extended periods?
• Does the product need an orientation indicator?
• Could heat, moisture or light affect the product or its labels?
• Is tamper evidence required, and if so, at which packaging level?
• Does the pack need to be opened while wearing gloves?
• Is the packaging intended for a healthcare setting, consumer use or both?

A small printed carton may need only modest protection when packed securely inside a larger shipper. The same carton may be unsuitable if sent loose through a more demanding distribution channel. Always evaluate the complete pack-out rather than judging the retail carton in isolation.

Common protection mistakes

Some frequent issues can be prevented at the specification stage:

• Choosing the box before measuring the packed product. Measure the product with its pouch, leaflet, accessories and protective materials included.
• Using a tight fit without checking removal. A product can be secure yet still difficult or unsafe to remove.
• Ignoring closure performance. Tuck tabs, seals and opening strips need to suit the handling method.
• Treating an outer carton as the only protection. Fragile or sterile-packed items may need internal support.
• Forgetting about print placement. Barcodes, warnings and opening instructions must remain visible after packing.
• Over-specifying decorative finishes. A finish should not compromise legibility, label adhesion or practical handling.

Compliance

Compliance for medical packaging in Australia depends on the product, its intended use, the pack’s role and the claims made on it. Packaging suppliers can produce boxes, labels and printed components, but the product owner or responsible organisation must determine the applicable requirements and approve the final packaging system.

Treat compliance as a documented review process, not a design assumption.

What to verify before production

Confirm the applicable Australian requirements and your internal quality obligations for:

• product identification and labelling;
• mandatory warnings, symbols and instructions;
• traceability fields, including batch, lot, serial or date details where required;
• sterile status and sterile barrier claims;
• tamper-evident features;
• storage conditions and environmental claims;
• barcode requirements for your sales or supply channel;
• accessibility and legibility of safety information;
• packaging materials that may contact the product or primary pack; and
• records for artwork approval, change control and supplier approval.

Where recognised standards or technical specifications are relevant to your product, confirm the current version and how they apply to the complete packaging system. Do not copy standard references onto artwork simply because a box resembles another medical product’s packaging.

Compliance-friendly artwork practices

Good artwork control supports compliance by making important information easier to manage. Use a structured layout with dedicated zones for fixed text, variable data and labels. Maintain enough contrast for readability, and avoid placing essential information over folds, seams, embossed areas or highly reflective finishes.

If a label will be applied after the carton is printed, define its location and maximum dimensions in the artwork. This prevents labels covering instructions, barcodes, expiry fields or opening directions.

Keep a final approved pack specification that includes:

• dieline and dimensions;
• material and finish;
• current artwork revision;
• approved colour references where relevant;
• barcode details;
• label placement;
• pack configuration;
• inspection criteria; and
• any product-specific handling instructions.

This record gives procurement, quality, operations and future suppliers a common reference point when reordering or changing the packaging.

FAQ

Is a custom carton suitable for sterile medical products?

It can be suitable as a secondary protective or presentation pack, but it is not automatically a sterile barrier. Confirm how the carton interacts with the sealed primary pack and whether the complete configuration requires validation or other approval.

What is the best box material for medical equipment?

There is no single best material. Lightweight accessories may suit paperboard cartons, while heavier or more fragile equipment may need corrugated board, rigid construction, inserts or cushioning. Select the material after assessing weight, fragility, pack configuration and distribution conditions.

Should variable information be printed directly on the carton?

Direct printing can work for stable information. For changing batch, serial, expiry or configuration details, a designated label area or controlled variable-print process may offer more flexibility. Confirm barcode scanning, adhesion and readability on the final material.

How can buyers reduce packaging errors across product variants?

Use a controlled artwork process, clear version naming, distinct product codes and a standard layout for information panels. Review physical samples for each variant, especially where accessories, labels or pack dimensions differ.

A well-specified pack protects the product, supports clear use and reduces avoidable rework. Start by documenting the product, primary pack, handling risks, required information and approval responsibilities, then request samples that can be checked with the actual packed item.
