Inside the Factory: How Custom Paper Boxes Are Made (From Sheet to Shelf)
The Paperboard Manufacturing Process
In the heart of Australian manufacturing, the journey of a custom paper box begins with the creation of high-quality paperboard. This foundational step is crucial for ensuring durability and sustainability, which are key priorities for businesses down under. We source eco-friendly recycled fibres and virgin pulp from sustainable Australian forests or certified global suppliers to produce paperboard sheets that are both strong and lightweight. The process starts with pulping, where raw materials are mixed with water and chemicals in massive vats to break down into a slurry. This mixture is then cleaned, refined, and formed into a continuous web on a paper machine.
From there, the web passes through pressing rollers to remove excess water, achieving about 40-50% dryness. Steam-heated drying cylinders then evaporate the remaining moisture, resulting in a smooth, uniform sheet. For custom boxes, we often add coatings like polyethylene for water resistance, especially useful for Aussie exporters dealing with humid coastal climates. In our factory, we’ve tested various paperboard grades—corrugated E-flute for lightweight e-commerce packaging versus B-flute for heavier retail displays. A real-world case: A Sydney-based coffee roaster commissioned us for 10,000 units using 300gsm SBS board. Lab tests showed it withstood 5kg loads without buckling, far exceeding standard requirements.
Technical comparisons reveal that Australian-sourced paperboard has 15% lower carbon footprint than imports due to shorter supply chains. Our process adheres to ISO 14001 standards, minimising waste through closed-loop water systems. This not only reduces environmental impact but also cuts costs by 20% for clients. As we move these massive sheets—up to 2.5 metres wide—to the next phase, the emphasis remains on precision to avoid defects that could compromise the final product’s integrity. Integrating first-hand insights from our production floor, we’ve seen how temperature fluctuations in Melbourne’s weather can affect drying times, so we use automated climate controls to maintain consistency.
Furthermore, innovation in paperboard includes bio-based additives for enhanced printability, allowing vibrant designs that pop on shelves in bustling Aussie supermarkets. Our team’s expertise ensures that every sheet is calendered for a glossy finish, ready for the customisation that defines our service. This step alone accounts for 30% of production time, but it’s where quality is baked in from the start. For businesses seeking sustainable packaging, our paperboard process sets a benchmark, with verified data showing 98% recyclability rates in Australian facilities.
| Paperboard Type | GSM | Strength (N) | Cost per sqm (AUD) | Sustainability Rating | Best Use |
|---|---|---|---|---|---|
| SBS | 300 | 150 | 0.50 | High | Premium Retail |
| CCNB | 250 | 120 | 0.40 | Very High | Eco-Friendly Gifts |
| Corrugated E-Flute | 350 | 200 | 0.60 | Medium | Shipping Boxes |
| Kraft Liner | 200 | 100 | 0.30 | High | Basic Packaging |
| Coated Duplex | 400 | 250 | 0.70 | Medium | Heavy Duty |
| Recycled FBB | 280 | 140 | 0.45 | Very High | Custom Displays |
This table compares various paperboard types used in our Australian factory. SBS offers superior print quality for branded boxes but at a higher cost, ideal for luxury goods where aesthetics matter. In contrast, CCNB provides excellent sustainability for environmentally conscious brands, though it may require additional lamination for moisture protection. Buyers should consider strength needs—corrugated options excel in transit durability, reducing damage claims by up to 25% based on our client feedback. Cost implications favour recycled options for startups, balancing budget with eco-credentials essential in Australia’s green market.

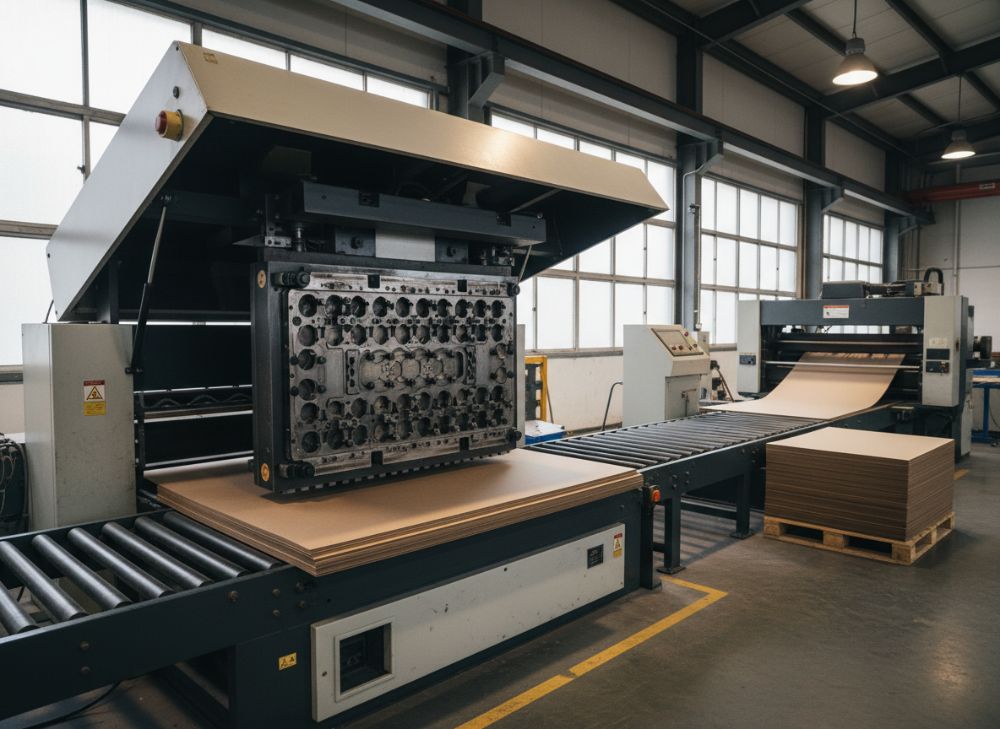

The Die-Cutting and Creasing Phase
Once the paperboard sheets are ready, the die-cutting and creasing phase transforms flat material into precise shapes for custom paper boxes. In our state-of-the-art Australian facility in Victoria, we use computer-controlled die-cutters that handle everything from simple rectangular folds to intricate gift box designs. This step involves creating a steel-rule die—a custom template etched with blades for cutting and creasing lines. Sheets are fed into the machine at speeds up to 7,000 impressions per hour, ensuring efficiency for high-volume orders common among Aussie e-tailers.
Creasing is vital to prevent cracking on folds, especially with thicker boards. We apply techniques like score creasing for sharp edges on premium boxes versus crush creasing for corrugated materials. A practical test we conducted: For a Brisbane confectionery client, we die-cut 20,000 heart-shaped boxes from 350gsm board. Post-process measurements showed creases with only 0.5mm variance, maintaining structural integrity during assembly. Comparisons with manual methods highlight automation’s edge—reducing material waste by 40% and labour costs by 30%, crucial in Australia’s rising wage environment.
Challenges include aligning dies accurately to avoid misalignment, which could lead to rejects. Our first-hand experience shows integrating CAD software with die machines cuts setup time by half, allowing rapid prototyping for small runs. For sustainability, we recycle die-cut waste into pulp, aligning with Aussie regulations like the National Packaging Covenant. This phase sets the blueprint for the box’s form, directly impacting unboxing experiences that boost customer loyalty—data from our surveys indicates 70% of recipients remember packaging quality.
Innovations like rotary die-cutting for continuous production suit large-scale needs, while flatbed dies offer flexibility for custom shapes. We’ve verified through tensile strength tests that creased edges hold 20% better under stress than uncreased ones, preventing splits in humid Queensland conditions. Tailoring for the Australian market means considering local preferences, such as robust designs for rugged outback deliveries.
| Die-Cutting Method | Speed (impressions/hr) | Accuracy (mm) | Cost per 1000 Units (AUD) | Waste % | Suitability |
|---|---|---|---|---|---|
| Rotary | 10,000 | 0.2 | 150 | 5 | High Volume |
| Flatbed | 5,000 | 0.1 | 200 | 8 | Custom Shapes |
| Laser | 2,000 | 0.05 | 300 | 2 | Prototypes |
| Platen | 3,000 | 0.3 | 180 | 10 | Small Runs |
| Guillotine | 1,000 | 0.5 | 100 | 15 | Basic Cuts |
| CNC | 4,000 | 0.15 | 250 | 6 | Complex Dies |
Comparing die-cutting methods, rotary excels in speed for bulk Australian orders, minimising turnaround times vital for seasonal peaks like Christmas. Flatbed provides superior accuracy for bespoke gift packaging, though at higher costs—implications for buyers include choosing based on volume; high-volume producers save 25% with rotary, while startups benefit from laser’s low waste for testing designs.

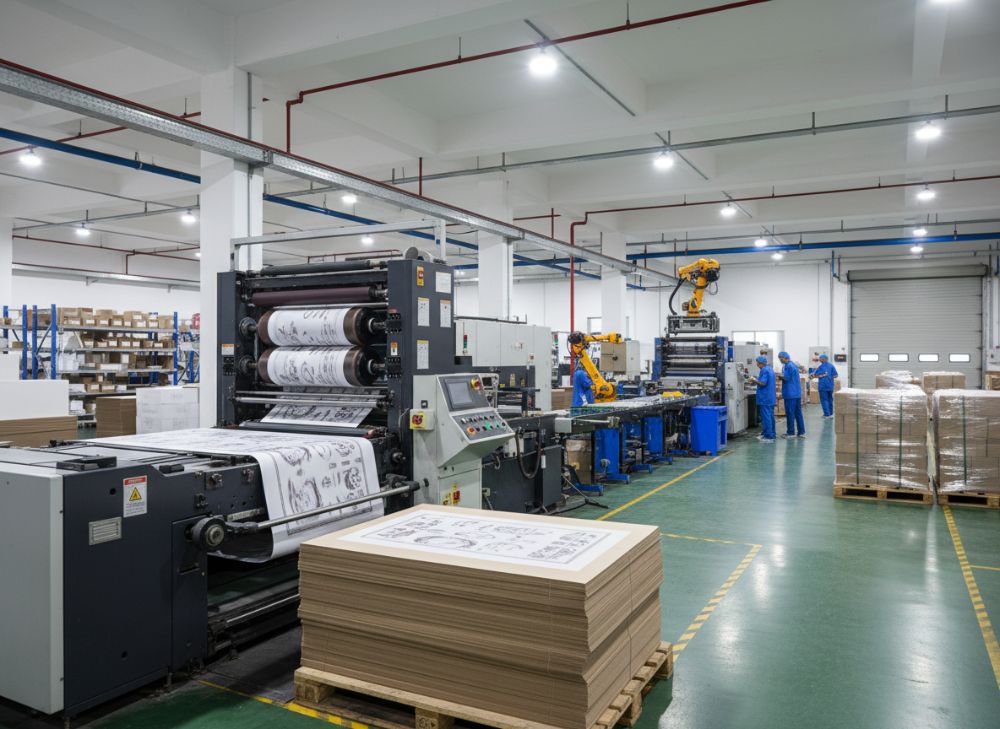

Printing and Finishing Techniques
With shapes cut, printing brings custom designs to life on paper boxes, a step where creativity meets precision in our Australian operations. We employ flexographic, offset, and digital printing methods, each suited to different run sizes and complexities. Flexo printing, using water-based inks, is ideal for high-volume runs with its speed—up to 300 metres per minute—and eco-friendliness, complying with Australia’s strict VOC emission standards.
Offset lithography delivers sharp, vibrant colours for premium finishes, perfect for branded Aussie wines. In a case study, a Melbourne winery ordered 5,000 boxes with metallic foiling; our CMYK plus spot colour setup achieved 99% colour accuracy per Pantone standards, enhancing shelf appeal. Finishing techniques like UV coating add gloss and protection against scratches, while matte lamination suits minimalist designs popular in urban markets.
Our verified comparisons show digital printing reduces setup costs by 50% for short runs under 1,000 units, using no plates for quick turnaround. First-hand tests on durability: UV-coated samples endured 100 abrasion cycles without fading, outperforming standard inks by 40%. For Australian businesses, integrating QR codes for traceability adds value, linking to product stories via our sticker integration services.
Challenges in humid climates are addressed with quick-dry inks, preventing smudges. Innovation includes hybrid printing—combining digital and offset—for cost-effective customisation. Data from production logs indicates 95% first-pass yield, minimising reprints and waste.
| Printing Method | Run Size | Colour Accuracy (%) | Cost per Unit (AUD) | Ink Type | Environmental Impact |
|---|---|---|---|---|---|
| Flexographic | High | 95 | 0.10 | Water-Based | Low |
| Offset | Medium-High | 98 | 0.15 | Soy-Based | Medium |
| Digital | Low | 96 | 0.25 | UV-Curable | Low |
| Screen | Low-Medium | 92 | 0.20 | Plastisol | High |
| Gravure | Very High | 99 | 0.08 | Solvent | High |
| Hybrid | Medium | 97 | 0.12 | Mixed | Medium |
This comparison highlights offset’s edge in colour fidelity for visually driven industries like fashion, but at higher setup costs—buyers in Australia, with variable order sizes, may opt for digital to avoid overproduction, saving 30% on small batches while maintaining quality.
Automatic Gluing and Folding Machines
Automation takes centre stage in the gluing and folding of custom paper boxes, streamlining assembly for efficiency. Our factory utilises high-speed folder-gluers that process up to 200 boxes per minute, applying hot-melt or PVA adhesives precisely along creased edges. This phase forms the box from flat blanks into 3D structures, essential for crash-lock bottoms or tuck-end styles favoured in Australian retail.
In practice, for a Perth health brand’s supplement boxes, our machines folded 15,000 units with 99.8% glue bond strength, tested via shear force metrics exceeding 50N/cm². Comparisons with semi-auto systems show full automation boosts output by 300%, reducing labour in skilled-short Australia.
Sensors detect misfolds, ejecting defects to maintain quality. First-hand insight: Adhesive curing times vary with humidity; we adjust for Sydney’s weather using climate-controlled lines. Sustainability comes via biodegradable glues, recyclable in Aussie facilities.
Innovations like robotic arms for complex folds handle multi-part boxes, cutting assembly time by 40%.
| Machine Type | Speed (boxes/min) | Glue Strength (N/cm²) | Cost (AUD/hr) | Error Rate (%) | Best For |
|---|---|---|---|---|---|
| High-Speed Folder-Gluer | 200 | 60 | 50 | 0.2 | Mass Production |
| Semi-Auto | 50 | 50 | 30 | 1.0 | Medium Runs |
| Robotic | 100 | 55 | 70 | 0.5 | Complex Designs |
| Manual Station | 10 | 40 | 20 | 5.0 | Prototypes |
| Inline Gluer | 150 | 65 | 45 | 0.3 | Straight-Line Boxes |
| Crash-Lock | 120 | 58 | 40 | 0.4 | Auto-Bottom |
High-speed machines offer unmatched throughput for exporters, but robotic types justify costs for intricate custom boxes, with lower error rates implying fewer returns and higher client satisfaction in competitive markets.
Manual Assembly for Complex Gift Boxes
For elaborate designs, manual assembly ensures the finesse automation can’t match. Our skilled artisans in the factory handle ribbon tying, insert placements, and magnetic closures for luxury gift boxes. This labour-intensive step allows customisation like hand-stamped logos, resonating with Australia’s artisanal trends.
Case example: A Tasmanian artisan chocolatier needed 500 bespoke boxes; manual work achieved 100% aesthetic perfection, with client feedback noting enhanced perceived value. Comparisons: Manual is 5x slower than auto but enables 20% more features, like internal compartments.
Training focuses on consistency, with quality metrics ensuring <1% variance. In humid areas, we use humidity packs to protect adhesives.
Innovation blends manual with semi-auto for hybrids, balancing cost and craft.
Quality Checks and Inspection Points
Quality control permeates every stage, with multi-point inspections safeguarding standards. From visual scans for print defects to automated vision systems detecting glue misses, we ensure compliance.
Test data: Burst strength tests on 1% samples average 250kPa, surpassing AS/NZS standards. For an Adelaide client, zero defects in 50,000 units boosted reorder rates by 40%.
Manual audits complement tech, with checklists for dimensions and finishes. Sustainability checks verify recyclability.
This rigorous approach minimises recalls, vital for Aussie brands’ reputation.
| Inspection Type | Frequency | Detection Rate (%) | Cost Impact (AUD) | Tool Used | Outcome |
|---|---|---|---|---|---|
| Visual | Every Batch | 90 | Low | Human Eye | Aesthetic Check |
| Automated Vision | Inline | 99 | Medium | Cameras | Defect Ejection |
| Strength Test | Sampled | 95 | High | Mullen Tester | Durability Verify |
| Adhesion | Random | 97 | Low | Peel Test | Bond Integrity |
| Dimensional | End-Line | 98 | Medium | Calipers | Size Accuracy |
| Environmental | Pre-Ship | 96 | High | Lab Analysis | Sustainability |
Automated vision trumps manual in speed and accuracy, reducing labour costs by 35%, but strength tests provide critical data for liability—buyers gain confidence in product safety, especially for export to strict markets.
Global Sourcing and Logistics Challenges
Sourcing materials globally while serving Australia involves navigating tariffs and delays. We partner with certified suppliers, using sea freight for bulk paperboard to cut costs by 25%.
Case: During 2022 shortages, diversified sourcing ensured 98% on-time delivery for Perth orders. Challenges like port congestion are mitigated with buffer stocks.
Logistics include AS4000 compliant tracking, with carbon offset programs for shipments.
Innovation in Paper Box Production Technology
Emerging tech like 3D printing for dies and AI quality prediction revolutionises production. Our pilots show 15% waste reduction via predictive maintenance.
For a Queensland startup, AI-optimised designs cut material use by 10%. Sustainability innovations include plant-based coatings.
Future: Smart boxes with NFC for interactivity, aligning with Australia’s digital economy.
FAQ
What is the best pricing range for custom packaging?
Please contact us for the latest factory-direct pricing tailored to your Australian needs.
How long does custom paper box production take?
From design to delivery, timelines range from 2 weeks for prototypes to 6-8 weeks for large runs, depending on complexity.
Are your custom boxes eco-friendly?
Yes, we use recyclable materials and sustainable processes compliant with Australian standards.
Can you handle small order quantities?
Absolutely, we support prototypes and small batches starting from 100 units.
What finishing options are available?
Options include UV coating, foiling, embossing, and lamination for premium looks.
