Medical Device Packaging Planning: Clear, Safer Pack-Outs

Packaging planning for medical devices that need clean presentation and accurate identification starts with a simple rule: packaging must help the right product reach the right user in the right condition, with key information easy to find. A box can improve handling, organisation and brand confidence, but it must not compromise the validated sterile barrier or obscure essential device information.

For Australian device teams, the practical approach is to map the product journey first: packing, warehousing, distribution, clinical receipt, storage, preparation and disposal. Then select secondary packaging, labels, inserts and stickers that support those steps. Confirm all applicable requirements, including current Australian regulatory, labelling and UDI obligations, with your regulatory and quality teams before production.

Secondary packaging options for disposables, kits, instruments, and accessories

Secondary packaging is the outer carton, sleeve, shipper or presentation pack that protects and identifies a product already enclosed in its primary pack. It is different from a sterile pouch, tray or other sterile barrier system. Where sterility is required, do not assume a printed box can replace or alter the validated primary packaging format.

The best secondary pack depends on the device category, quantity, weight, handling needs and sales channel.

Folding cartons for efficient, clear presentation

Folding cartons work well for lightweight devices, consumables and accessory packs. They can carry prominent identification panels while remaining compact in storage. A well-planned carton makes it easier to distinguish product variants without relying on subtle text changes alone.

Useful design choices include:

• A dedicated front or top panel for the product name and key variant.
• A side panel for technical details, contents and handling information.
• A consistent position for lot, batch, expiry or serial information when applicable.
• Strong visual differentiation between sizes, configurations or compatible models.
• Space for mandatory marks and local-market information that may change over time.

Avoid overfilling every panel. In clinical and warehouse environments, packaging is often read quickly, under artificial light or while staff are wearing gloves.

Rigid boxes for sensitive or presentation-led products

Rigid boxes can be suitable when a product needs extra physical protection, a reusable storage format or a more ordered presentation. They are often considered for higher-value instruments, premium kits and multi-component sets.

However, rigid packaging adds material and may take more space in storage. It should earn its place by solving a specific problem: reducing movement, safeguarding delicate parts or helping users repack a reusable set. If it only adds visual weight without improving handling, a well-designed folding carton may be the more practical choice.

Use printed outer packs with restraint

Medical products generally benefit from a clean, controlled visual system rather than decorative graphics. Brand colour can support recognition, but high-contrast text and product differentiation should take priority. A calm, uncluttered pack is not merely a stylistic preference; it can make key details faster to locate.

For packaging intended for a regulated product line, confirm whether the printed secondary packaging is included in documentation, change-control procedures or validation activities. Artwork changes, substrate changes and the relocation of essential information can all have implications that should be assessed before ordering.

Label hierarchy that helps users identify products faster in clinical settings

A label hierarchy gives users a predictable path to the information they need. The aim is not to print every detail at the largest size. It is to place the most decision-critical details where they can be found immediately, while supporting information remains accessible without clutter.

A useful hierarchy usually has four levels.

1. Immediate product identification

The most prominent panel should answer:

• What is this product?
• Which model, size, configuration or variant is it?
• How many units are in the pack?
• Is there a clear visual cue that distinguishes it from adjacent products?

Use plain product names where possible. Internal product codes are useful, but they should not be the only identifying feature for people selecting or using the item.

2. Use and compatibility information

The next level helps prevent selection errors. Depending on the device, this may include compatible systems, dimensions, intended user setting, component type or a concise contents statement.

Keep compatibility wording specific. Terms such as “universal” or “fits most” can create confusion unless they are accurate, supportable and appropriate for the product documentation.

3. Traceability and controlled data

Lot or batch details, serial data, dates and UDI-related information should be placed consistently. Users should not have to turn a box repeatedly to find traceability data. Consider where staff are most likely to scan, check or record the information during receiving and use.

Leave enough unprinted or suitably prepared space for variable data where it will be added later. Check that the location, contrast and surface are suitable for the intended printing or scanning method.

4. Supporting and legal information

This may include symbols, storage directions, manufacturer or sponsor details, warnings and instructions directing users to further information. Requirements differ by device and market status, so the final information set should be confirmed by the responsible compliance team.

A common mistake is shrinking essential information to make room for marketing language. In medical device packaging, clarity is usually the stronger expression of quality.

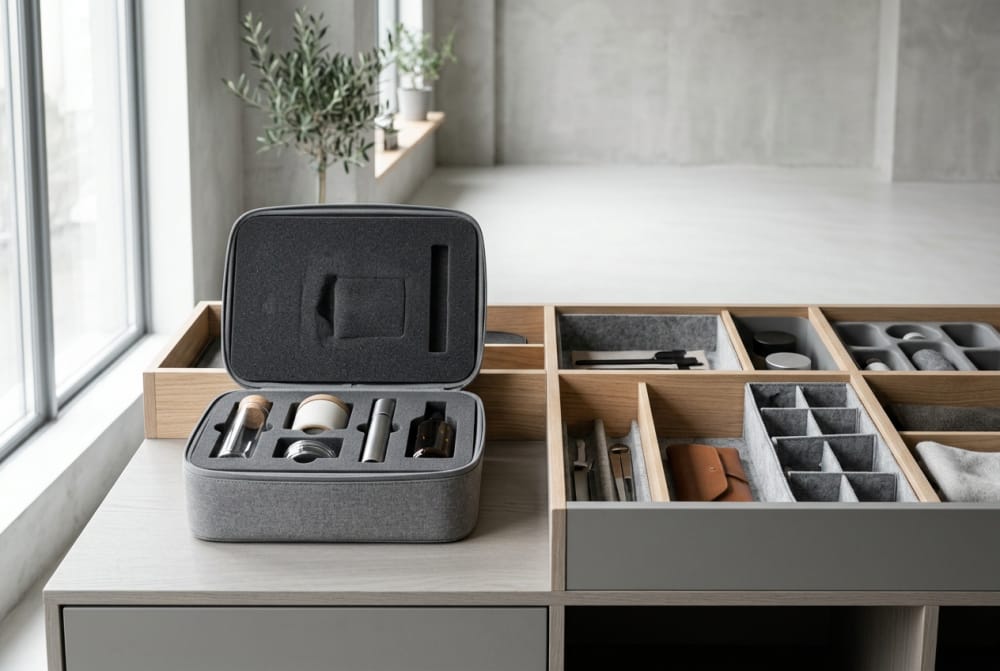

Insert and compartment ideas for organised pack-outs and safer product handling

Inserts do more than hold components still. They can guide the user through the pack-out, show whether an item is missing and reduce the chance of parts being mixed up during preparation.

Choose the insert type according to the item’s fragility, shape, number of components and removal sequence.

Flat cards and divider boards

Flat cards, folded dividers and simple board partitions are practical for lightweight components. They help separate sterile-packed items, instruction leaflets, cables or accessories while using relatively little material.

They are suitable when the product does not need deep cushioning but benefits from clear order. Print discreet component names or position markers on the insert if this improves set-up accuracy.

Die-cut cardboard inserts

Die-cut inserts create dedicated spaces for specific products. They can be useful for kits with multiple components, particularly where a visual gap makes a missing part immediately noticeable.

Before approving a die-cut layout, check:

• Can users remove each item while wearing gloves?
• Are labels, pouches or critical surfaces likely to snag?
• Does the pack still work if component dimensions vary within tolerance?
• Can the insert be assembled consistently?
• Does the opening sequence match the preparation sequence?

Trays, cradles and protective structures

A formed tray or structured cradle may be appropriate for delicate instruments, items with sharp edges or devices that should not move during handling. The materials and construction should be assessed for compatibility with the primary pack, intended storage conditions and the product’s relevant quality requirements.

Do not design an insert solely around an idealised unboxing moment. Field users may open the pack on a bench, trolley or limited workspace. The format should remain manageable in the real environment where it will be used.

Kit maps and visual order

For procedure kits and device bundles, a simple printed map can reduce searching. It may sit inside the lid, on an insert card or on an outer panel. Numbering can help where the user must remove components in order, but it should align with approved instructions for use rather than creating a conflicting workflow.

Sticker use for UDI, lot data, warehouse workflows, and fast revisions

Stickers are useful where data changes frequently, where multiple markets require different information or where an outer carton needs warehouse-specific identification. They can also reduce the need to reprint an entire carton for a controlled, approved change.

For example, stickers may be considered for:

• UDI-related carrier information, where required and approved.
• Lot, batch, serial or date fields.
• Warehouse receiving labels and internal location codes.
• Distributor-specific outer-carton identifiers.
• Temporary artwork updates during a managed packaging transition.
• Version control markers for instructions or bundled accessories.

A custom printed sticker can be a practical addition to a packaging system, but it needs the same planning discipline as printed artwork.

Sticker checks before production

Confirm the following before selecting a label stock or adhesive:

1. Surface compatibility: Will the label adhere to the carton coating, sleeve, pouch or shipper surface?
2. Storage conditions: Could humidity, refrigeration, heat or handling affect adhesion or legibility?
3. Scanning performance: Does the printed code scan reliably in the expected environment?
4. Placement: Does the sticker cover essential information, opening instructions or tamper features?
5. Removal and residue: Is the label intended to stay in place, be removed at receiving or be replaced later?
6. Version control: Can staff tell old labels from current labels without ambiguity?

Stickers are not a shortcut around artwork governance. If a label changes product identification, instructions, traceability or required information, it should be reviewed through the organisation’s established change process.

How distributor packaging differs from e-commerce packaging for device categories

Distributor and e-commerce packaging may contain the same device, but the packaging job is different.

Distributor packaging is usually handled in larger quantities through receiving, storage and onward supply. E-commerce packaging typically has more individual parcel handling, more mixed-item orders and a greater chance that an outer shipper is seen by the end recipient.

For both channels, the device carton should retain its core identification and presentation role. The shipper should protect the device pack, not become the only place where the product can be identified.

If the product may be dispatched directly to clinics, consumers or practitioners, consider privacy and discretion. Exterior packaging should not disclose more sensitive product detail than the shipment process requires.

Ways packaging design can reduce setup mistakes in the field

Good packaging design reduces unnecessary choices. It makes the correct item easier to select, the opening sequence easier to understand and the pack contents easier to verify.

Practical ways to support correct set-up include:

• Differentiate look-alike variants: Use distinct colour blocks, large variant names and clearly different product images only where images are accurate and useful.
• Use consistent panel locations: Put the product name, size and traceability data in the same place across a product family.
• Match the pack-out to workflow: Position the first-needed item on top or make it the most accessible component.
• Make components countable: Use compartments, outlines or labelled positions so a missing item is apparent.
• Separate similar small parts: Avoid loose mixed components where an insert, divider or individual labelled pack would reduce confusion.
• Show opening direction: Add concise opening cues, especially for packs with trays, sleeves or multiple layers.
• Avoid competing messages: A promotional claim should never visually overpower a warning, variant identifier or handling instruction.

User testing can be valuable, but packaging teams should not assume informal feedback is sufficient for a regulated decision. Determine internally what reviews, risk assessments and approvals are needed before a change is released.

Presentation issues that can make medical products look less reliable

Packaging does not need to look luxurious to inspire confidence. It does need to look intentional, clean and consistent. Small presentation failures can make a device appear poorly controlled even when the product itself is sound.

Common issues include:

• Inconsistent product names across carton, sticker and instructions.
• Low-contrast text that is hard to read in a storeroom or treatment room.
• Overcrowded panels with too many type styles, colours or icons.
• Colour coding that is too subtle to distinguish variants quickly.
• Labels applied crookedly, over folds or over other critical text.
• Poorly fitted inserts that allow components to shift.
• Cartons that crush easily in normal handling.
• Generic imagery that does not match the actual device or pack contents.
• A mismatch between premium visual claims and visibly basic construction.
• Different artwork versions circulating at the same time.

A clean design also requires operational control. Establish an approved artwork file, version identifier, proofing process and sign-off list before placing a production order. This reduces the chance that a prior revision, incorrect language block or obsolete accessory list is inadvertently reused.

How to source custom packaging for regulated product lines with fewer revisions

The most efficient sourcing process begins before requesting a quote. A packaging supplier can manufacture to a brief, but the device owner or responsible team needs to define what information and performance the packaging must support.

Prepare a practical packaging brief

Include:

• Product name, SKU list and variant matrix.
• Product dimensions, weight and component count.
• Primary pack format and any dimensions that cannot change.
• Required secondary-pack quantity and pack-out orientation.
• Artwork files, brand guidelines and mandatory content.
• Variable-data needs, such as lot, serial, date or UDI-related fields.
• Preferred board, finish and insert approach, if known.
• Expected storage, handling and distribution conditions.
• Whether the carton is for distribution, direct dispatch, retail-style display or a combination.
• Required samples, approvals and artwork version-control steps.

Where you need a tailored outer carton, review custom packaging boxes alongside the actual primary pack, rather than specifying dimensions from a flat artwork file alone.

Ask the right supplier questions

When comparing suppliers, ask whether they can clearly document the agreed construction, dimensions, artwork revision and finishing details. Confirm what the supplied proof represents, what remains subject to final approval and how changes are recorded.

Also discuss practical production points, such as:

• Whether the design needs a glued carton, sleeve, tuck closure or separate insert.
• Which elements are printed directly and which will be added as variable labels.
• How the pack will be supplied for assembly.
• Whether the artwork includes sufficient bleed, safe zones and barcode clearance.
• How colour references, finishes and substrates will be approved.
• Whether samples can be reviewed with the actual device and primary packaging.

XGolden Print provides custom packaging boxes and printing solutions, with 27 years of experience and a manufacturing team of more than 500 employees. For medical-device work, the important next step is still to provide a controlled brief and have the final packaging specification reviewed by the people responsible for product, quality and regulatory decisions.

Final packaging checklist

Before approving a medical device box, insert or sticker, check that:

• The secondary pack does not compromise the primary or sterile barrier system.
• Product name, model, variant and quantity are quick to identify.
• Essential information has a logical and repeatable location.
• Variable data has adequate space and remains legible after application.
• Labels do not cover critical text or interfere with opening.
• Inserts protect and organise components without making removal difficult.
• Similar product variants are visually distinct.
• Distributor and direct-dispatch needs have been considered separately.
• Artwork revisions are controlled and approved.
• Applicable Australian requirements are verified for the specific device and market pathway.

Start by building a one-page pack-out brief for each device family, then compare carton, insert and sticker options against the real handling workflow. This creates a clearer basis for design approval and for discussing custom packaging requirements with a supplier.
